A Homeowner's Guide to Stormwater Systems in New Jersey

Catch basins, dry wells, and buried downspout lines all have plain jobs once someone explains them. Here is what each piece of a stormwater system does and how they work together on a New Jersey lot.

When hard rain hits, a roof and a driveway shed water within seconds, and all of it lands somewhere on your lot. A stormwater system is the built infrastructure that catches that water, carries it in buried pipe, and releases it somewhere safe. The hardware has unfamiliar names, but every piece has a plain job, and a homeowner who knows the parts can follow exactly what a contractor is proposing.

Every system does three things: it collects water, moves it through pitched pipe, and releases it at a safe ending point. Each component below belongs to one of those jobs.

Catch Basins: Collection at a Low Point

A catch basin is a box set into the ground with a grate on top and an outlet pipe on the side. Surface water pools over the grate, drops into the box, and leaves through the pipe. Below the outlet, the box has a sump that traps sediment, leaves, and grit so the pipe does not silt up, which is why a catch basin needs occasional cleaning to keep working.

Catch basins belong at low points where water already gathers: the dip in a lawn, the corner of a driveway, the edge of a parking area. If your property has a spot that turns into a pond in every storm, a catch basin turns that collection point into an intake.

Trench Drains: Collection Across a Path

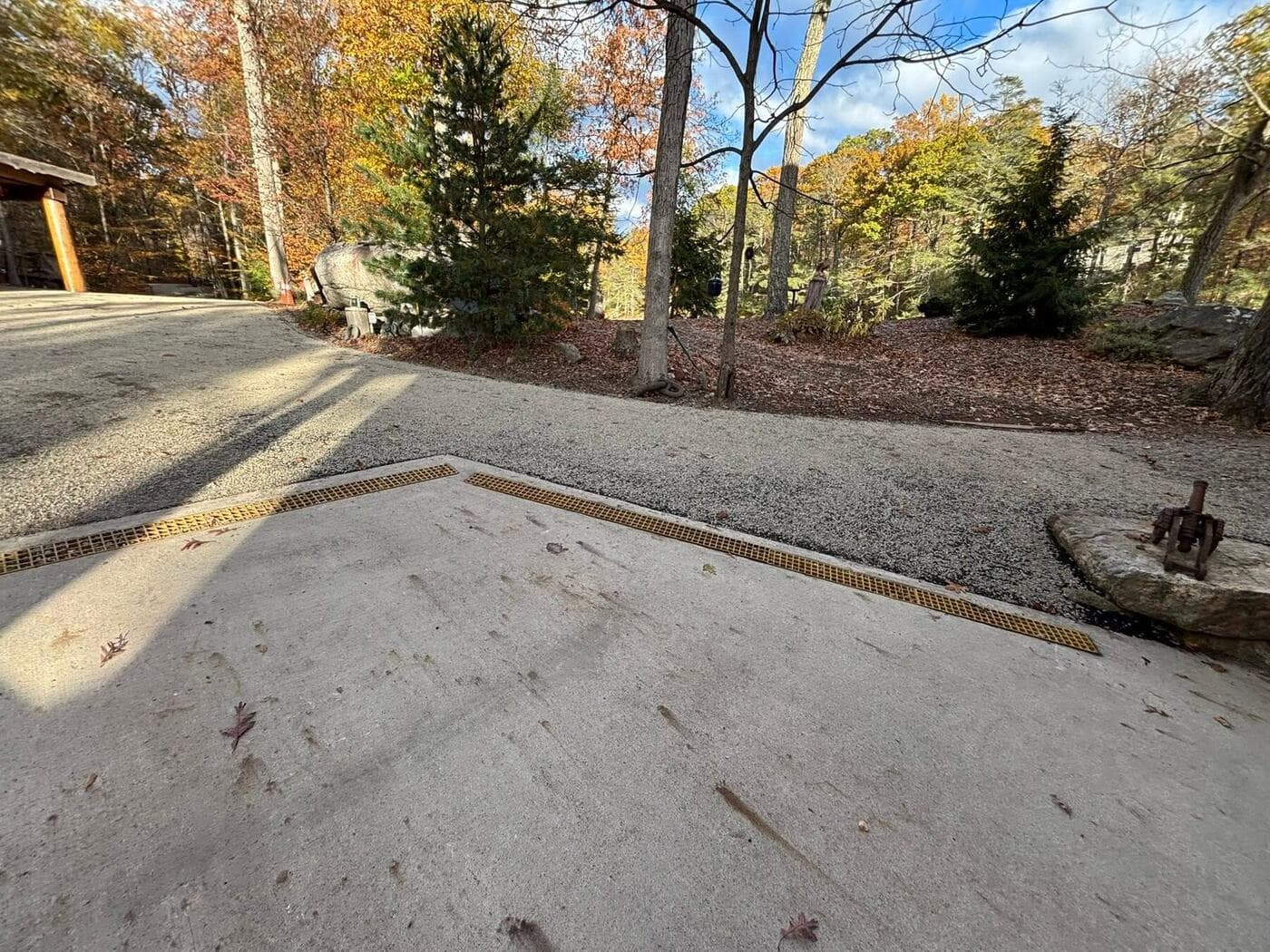

A trench drain is a long, narrow channel with a grate, set flush into pavement, that intercepts water flowing across it. The classic residential install sits in front of a garage at the bottom of a pitched driveway, where it catches the sheet of water that used to run under the door. The channel ties into the same kind of buried pipe as everything else in the system, and the same idea works along patios and walkways where runoff crosses.

Buried Downspout Lines: Roof Water Piped Away

A roof collects rain from its whole footprint and concentrates it at a few downspouts. Letting those downspouts discharge at the corners of the house loads all that water into the soil against the foundation, and that is how many wet basements get their start. A buried downspout line connects the downspout to underground pipe and carries the roof water to a discharge point away from the house instead.

These lines are simple, and they solve more than you might expect, because the roof is often the largest single source of concentrated water on a residential lot. Piping it away can calm a soggy yard and a damp basement at the same time.

Dry Wells: Discharge When There Is No Downhill

Every system needs an ending point. On a lot with fall, buried pipe can daylight downhill or end at a pop-up emitter that opens under flow and spreads the water over the lawn. On a flat lot, a dry well does the job: an underground chamber surrounded by stone that stores the surge from a storm and releases it into the surrounding soil gradually.

Soil decides how well a dry well performs. Much of North Jersey sits on dense, slow-draining ground, and a dry well in soil like that gives back its stored water slowly, so it has to be sized for the roof and pavement area feeding it. A design that works in sandy ground can stay full in heavy soil, and a full dry well overflows in the next storm. This is one of the places where local experience matters more than the hardware.

How the Pieces Fit Together

A real system is usually a combination. A trench drain at the garage and two buried downspout lines might all tie into one main pipe that falls to a single dry well. A catch basin in the back lawn might share a discharge with a French drain along the foundation. Gravity is the entire engine, so every run of pipe has to hold continuous fall from intake to outlet, and the whole layout gets planned backward from the discharge point.

Surface pitch feeds the hardware. A catch basin in ground that pitches away from it collects nothing, so grading corrections are often built into the same project. Our stormwater systems page covers this infrastructure in more detail, and the drainage systems page covers the diagnosis side, finding out why water stands where it does. Most projects draw on both.

What Installation Involves

All of this goes into the ground through open trenches, so an install is an excavation project. The trenches get cut to a checked depth and grade, pipe gets set on stone bedding, and backfill goes back in compacted lifts so the lawn does not settle into a ditch line later. Before any digging starts, the New Jersey utility mark-out gets called in, as state law requires, so the new trenches route around the gas, power, and water already buried on the lot.

The job ends with restoration. Lawn areas get topsoil and are left ready for seed or sod, and disturbed pavement gets put back. If you are watching water pond in the same spot every storm, describe what happens during a hard rain and we will trace the runoff on a free site visit and put the system, piece by piece, in a written estimate.
